スピーカ

一般用スピーカ

品番

仕様

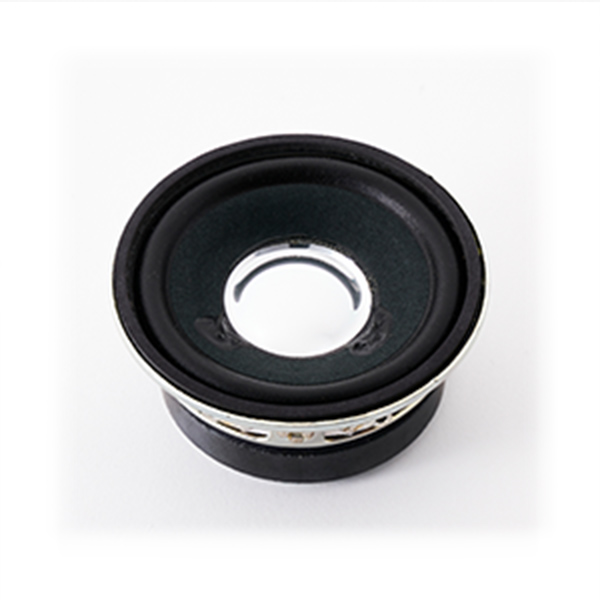

054115

■Speciﬁcations

Size	φ50mm
Nominal Impedance	8Ω
Nominal Power	2W
F₀	230Hz ± 46Hz
Effective Frequency Band	f₀ - 20kHz
Sound Pressure Level	83dB ± 2dB
Net Weight	85g

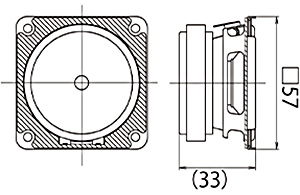

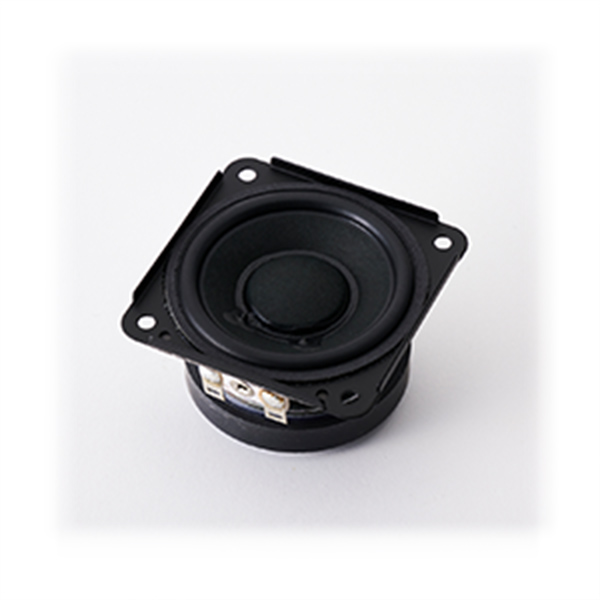

411214

■Speciﬁcations

Size	φ57mm
Nominal Impedance	8Ω
Nominal Power	4W
F₀	140Hz ± 28Hz
Effective Frequency Band	f₀ - 28kHz
Sound Pressure Level	82dB ± 2dB
Net Weight	172g

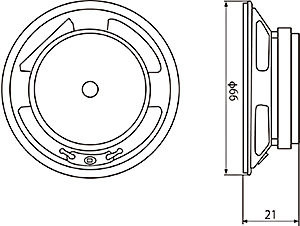

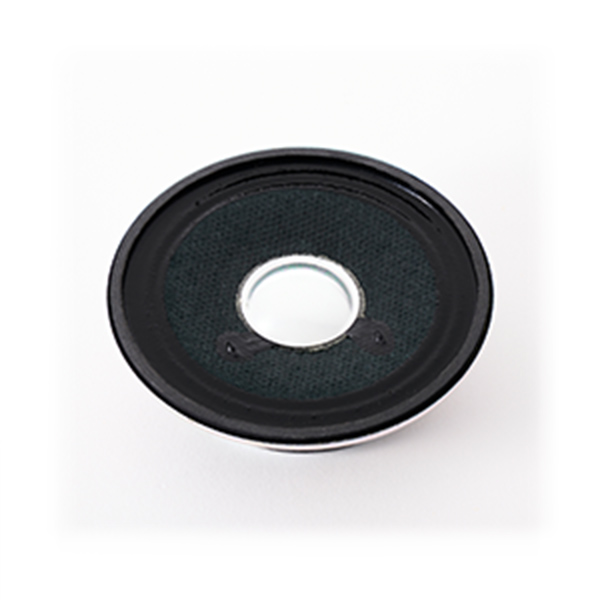

000181

■Speciﬁcations

Size	φ65mm
Nominal Impedance	8Ω
Nominal Power	1.5W
F₀	240Hz ± 48Hz
Effective Frequency Band	f₀ - 13kHz
Sound Pressure Level	87dB ± 2dB
Net Weight	110g

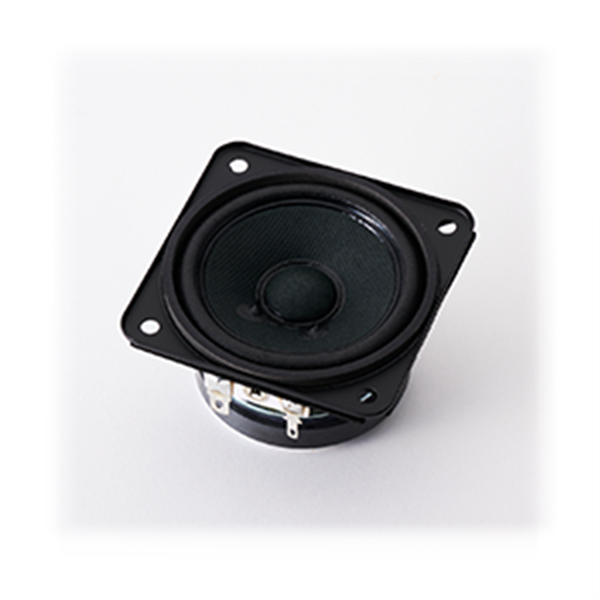

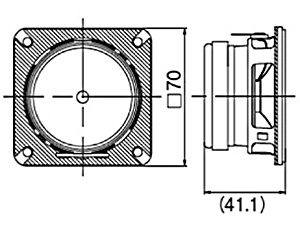

411209

■Speciﬁcations

Size	φ65mm
Nominal Impedance	8Ω
Nominal Power	10W
F₀	125Hz ± 25Hz
Effective Frequency Band	f₀ - 20kHz
Sound Pressure Level	82.5dB ± 2dB
Net Weight	240g

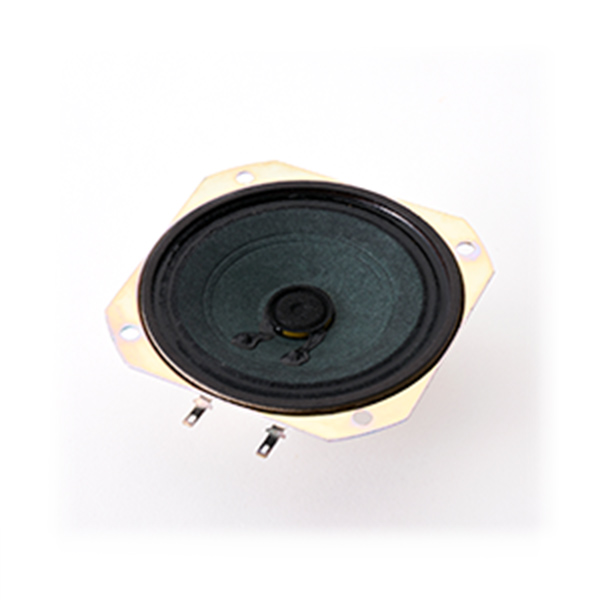

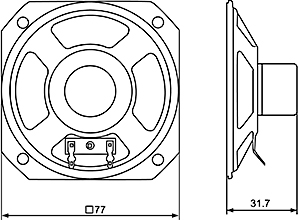

000279

■Speciﬁcations

Size	φ80mm
Nominal Impedance	8Ω
Nominal Power	1W
F₀	220Hz ± 44Hz
Effective Frequency Band	f₀ - 5kHz
Sound Pressure Level	84dB ± 2dB
Net Weight	70g

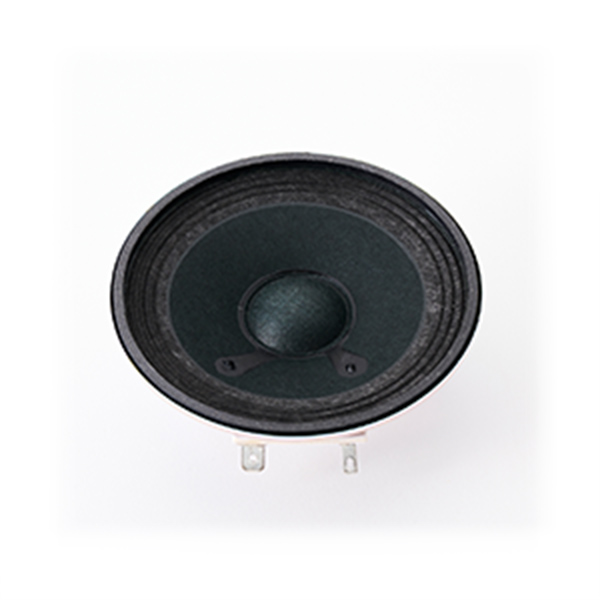

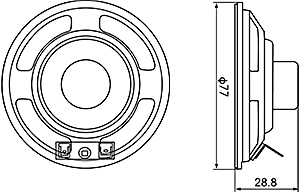

043417

■Speciﬁcations

Size	φ80mm
Nominal Impedance	8Ω
Nominal Power	2W
F₀	240Hz ± 48Hz
Effective Frequency Band	f₀ - 12kHz
Sound Pressure Level	82.5dB ± 2dB
Net Weight	55g

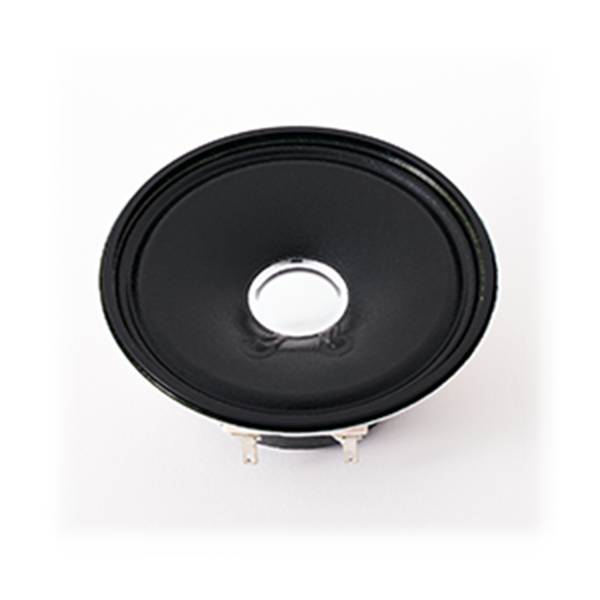

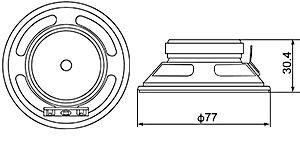

000320

■Speciﬁcations

Size	φ80mm
Nominal Impedance	8Ω
Nominal Power	4W
F₀	300Hz ± 60Hz
Effective Frequency Band	f₀ - 15kHz
Sound Pressure Level	85.5dB ± 2dB
Net Weight	120g

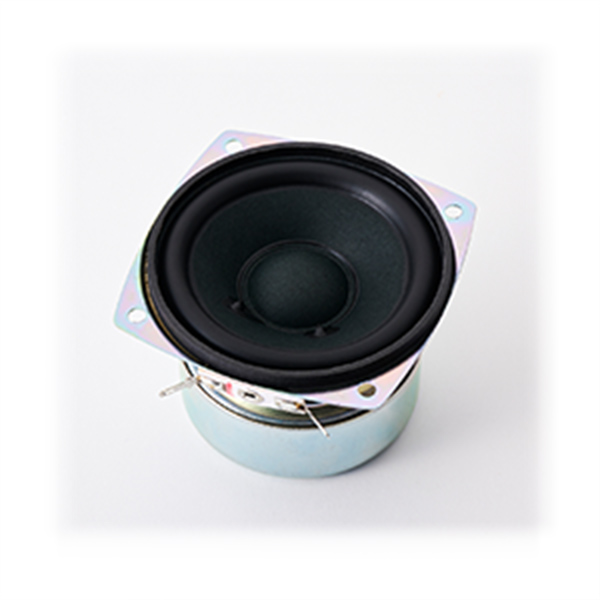

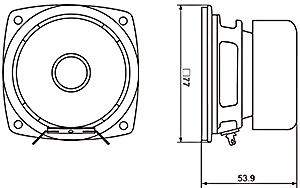

477962

■Speciﬁcations

Size	φ80mm
Nominal Impedance	8Ω
Nominal Power	10W
F₀	125Hz ± 25Hz
Effective Frequency Band	f₀ - 15kHz
Sound Pressure Level	84dB ± 2dB
Net Weight	381g

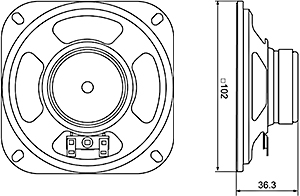

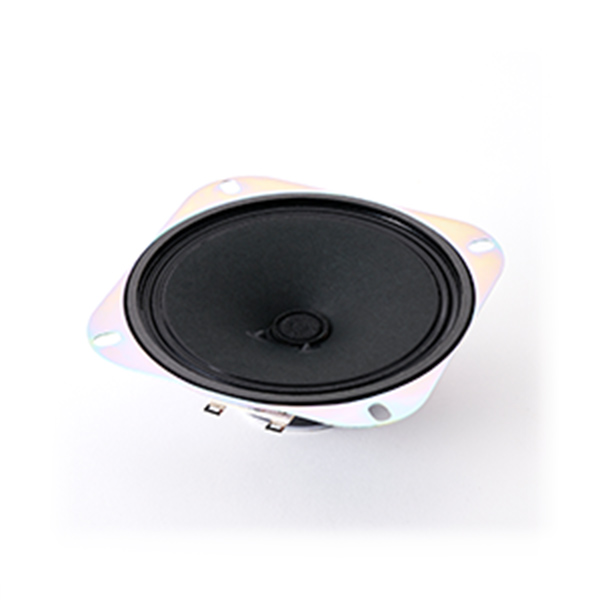

000460

■Speciﬁcations

Size	φ100mm
Nominal Impedance	8Ω
Nominal Power	2W
F₀	150Hz ± 30Hz
Effective Frequency Band	f₀ - 12kHz
Sound Pressure Level	87dB ± 2dB
Net Weight	170g

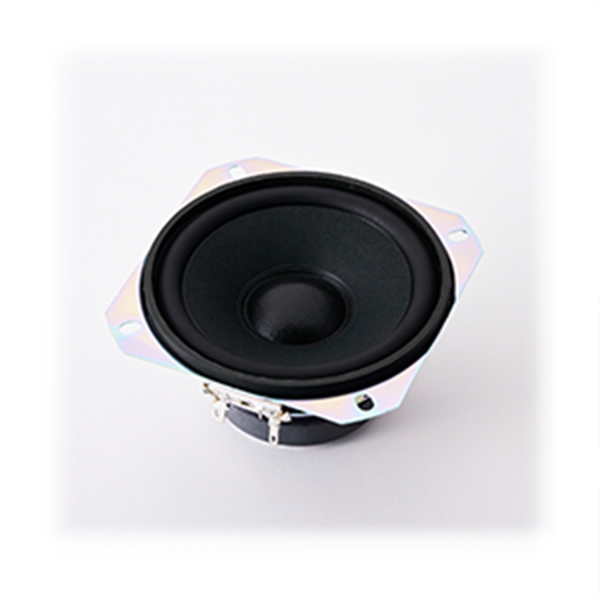

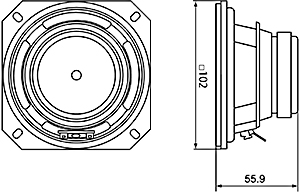

612586

■Speciﬁcations

Size	φ100mm
Nominal Impedance	7.5Ω
Nominal Power	25W
F₀	85Hz ± 17Hz
Effective Frequency Band	f₀ - 10kHz
Sound Pressure Level	81.5dB ± 2dB
Net Weight	341g

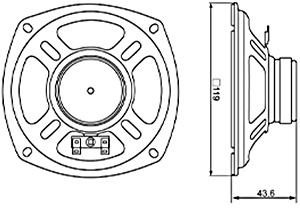

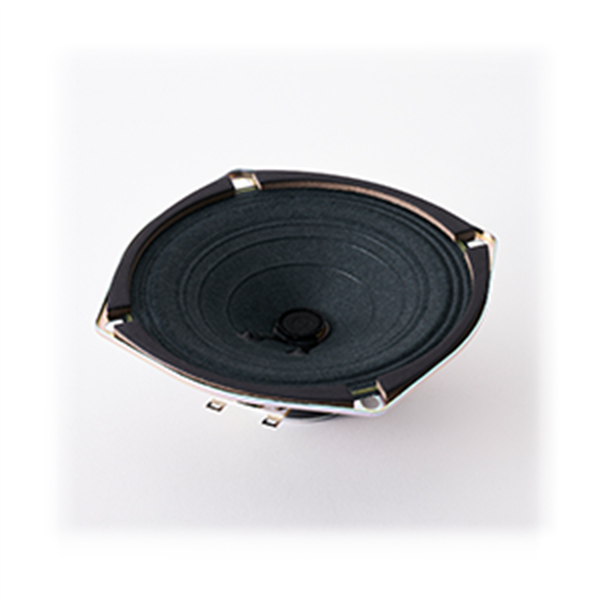

000698

■Speciﬁcations

Size	φ120mm
Nominal Impedance	8Ω
Nominal Power	3W
F₀	160Hz ± 32Hz
Effective Frequency Band	f₀ - 14kHz
Sound Pressure Level	89dB ± 2dB
Net Weight	187g

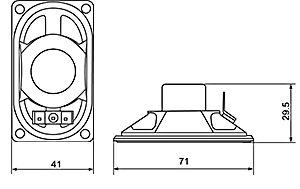

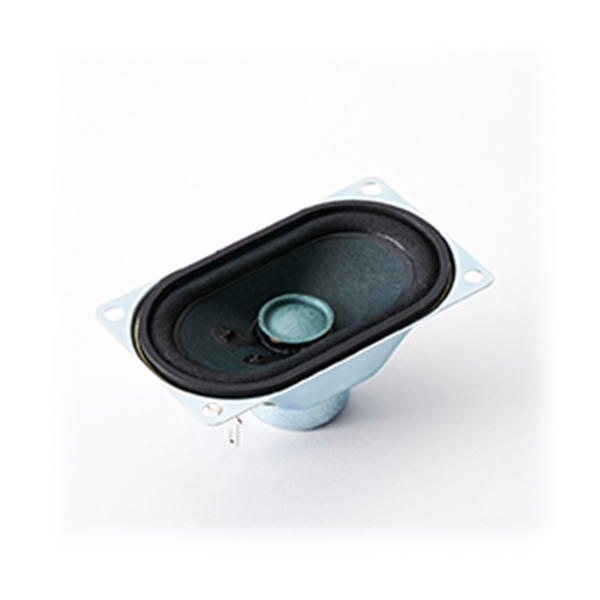

000251

■Speciﬁcations

Size	70 x 40mm
Nominal Impedance	8Ω
Nominal Power	2W
F₀	250Hz ± 40Hz
Effective Frequency Band	f₀ - 20kHz
Sound Pressure Level	82dB ± 2dB
Net Weight	53g

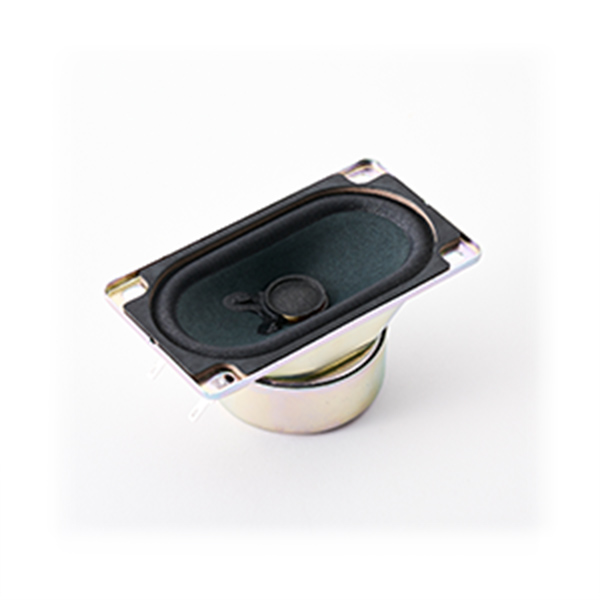

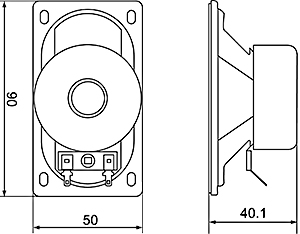

000436

■Speciﬁcations

Size	90 x 50mm
Nominal Impedance	8Ω
Nominal Power	3W
F₀	170Hz ± 34Hz
Effective Frequency Band	f₀ - 18kHz
Sound Pressure Level	85dB ± 2dB
Net Weight	175g

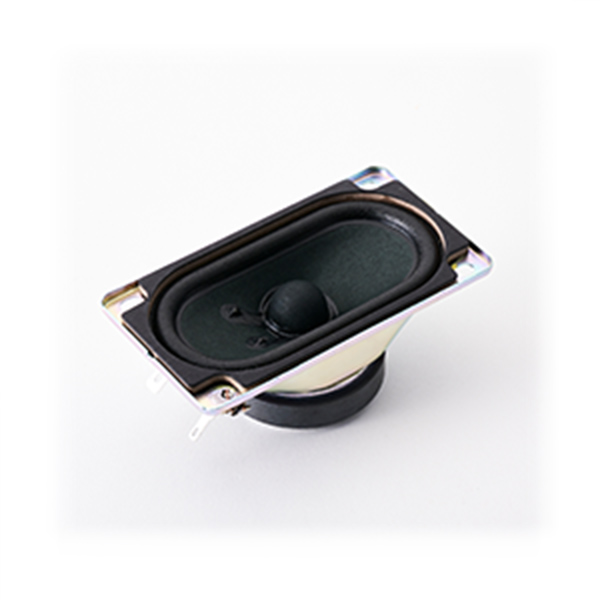

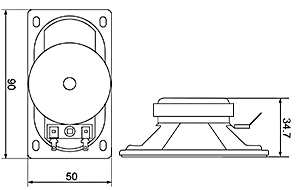

612589

■Speciﬁcations

Size	90 x 50mm
Nominal Impedance	8Ω
Nominal Power	10W
F₀	165Hz ± 33Hz
Effective Frequency Band	f₀ - 15kHz
Sound Pressure Level	85dB ± 2dB
Net Weight	147g

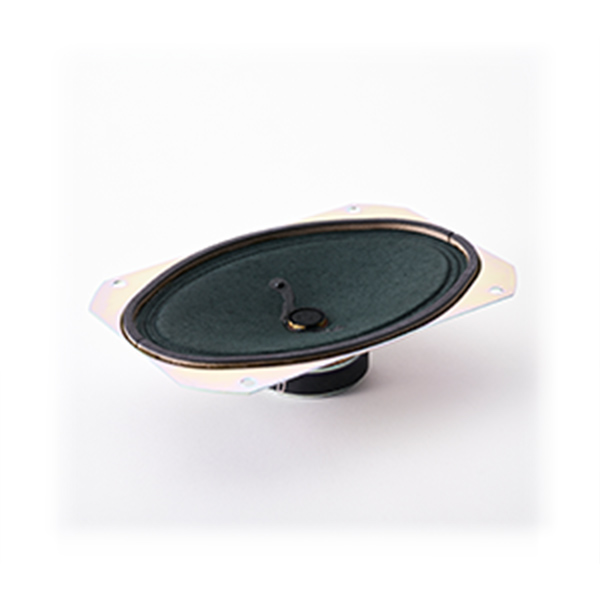

001007

■Speciﬁcations

Size	156 x 104mm
Nominal Impedance	8Ω
Nominal Power	3W
F₀	140Hz ± 20Hz
Effective Frequency Band	f₀ - 9kHz
Sound Pressure Level	89dB ± 2dB
Net Weight	282g

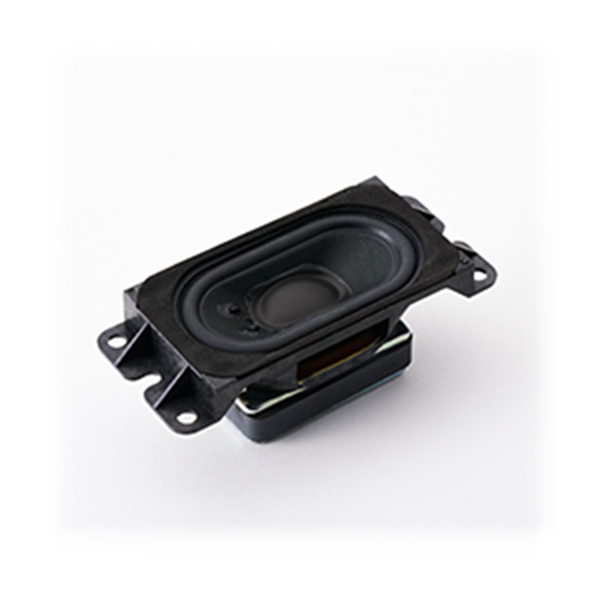

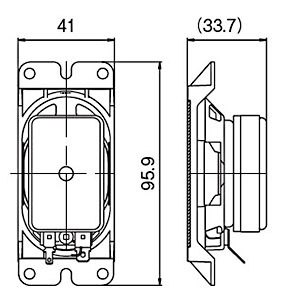

411207

■Speciﬁcations

Size	95 x 41mm
Nominal Impedance	8Ω
Nominal Power	3W
F₀	140Hz ± 28Hz
Effective Frequency Band	f₀ - 20kHz
Sound Pressure Level	81dB ± 2dB
Net Weight	140g

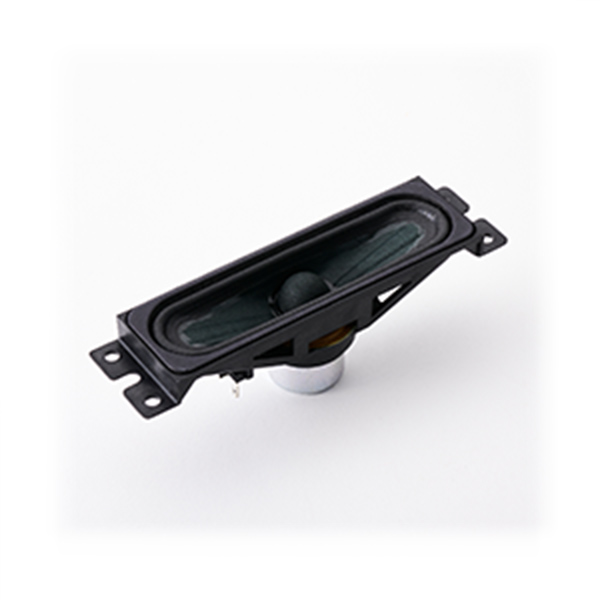

049350

■Speciﬁcations

Size	120 x 30mm
Nominal Impedance	8Ω
Nominal Power	3W
F₀	205Hz ± 41Hz
Effective Frequency Band	f₀ - 13kHz
Sound Pressure Level	81.5dB ± 2dB
Net Weight	55g

「技術情報」、「取り扱いに関する注意事項」については、当社製品に関する重要な設計情報などが記載されていますので、ご使用検討の際は必ず事前にお読みください。

技術資料: PDFダウンロード（1.98MB）

取り扱いに関する注意事項: PDFダウンロード（300KB）
