バイブレーションアクチュエータ

バイブレーションアクチュエータ

  • 品番
    仕様

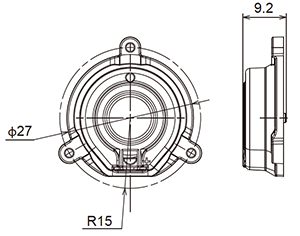

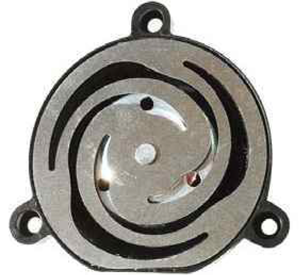

  • 602760

    Reference only

    ■Specifications
    Size φ27mm
    Impedance 16Ω
    Nominal Power 0.26W
    F0 75Hz ± 15Hz
    Net Weight 7g
  • 583906

    Reference only

    ■Specifications
    Size φ30mm
    Impedance 24Ω
    Nominal Power 46mW
    F0 60Hz
    Net Weight 10g

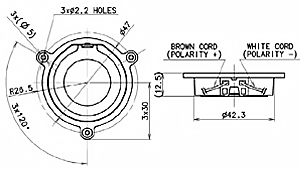

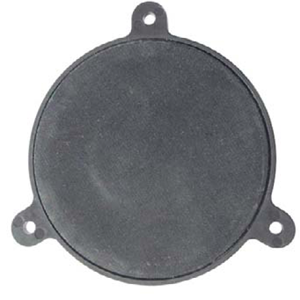

  • 576865

    Reference only

    ■Specifications
    Size φ47mm
    Impedance 6Ω
    Nominal Power 5W
    F0 75Hz
    Net Weight 60g

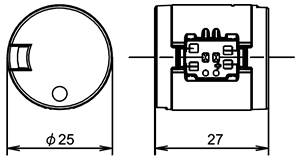

  • 639897

    Reference only

    ■Specifications
    Size φ25mm x 27mm
    Impedance 5.7Ω
    Rated Input Voltage 1.0Vrms
    Maximum acceleration frequency 65Hz
    Vibration acceleration 2.61Gp-p at 65Hz (200g)
    Net Weight 28.0g

    ◀︎イメージ動画はこちらより
    　ご覧いただけます

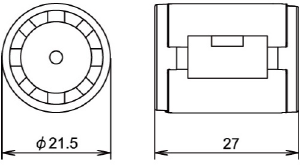

  • 646752

    Reference only

    ■Specifications
    Size φ21.5 x 27mm
    Impedance 6.7Ω
    Rated Input Voltage 1.5Vrms
    Maximum acceleration frequency 60Hz
    Vibration acceleration 3.5Gp-p
    Net Weight 28.0g

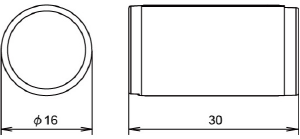

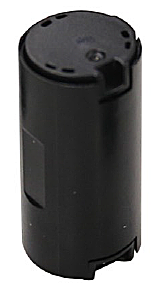

  • 628865

    Reference only

    ■Specifications
    Size φ16 x 30mm
    Impedance 20Ω
    Rated Input Voltage 1.8Vrms
    Maximum acceleration frequency 60Hz
    Vibration acceleration 1.93Gp-p
    Net Weight 18g
  • 640589

    Reference only

    • 車載用
    ■Specifications
    Size 22 x 32 x 7.2mm
    Impedance 8.4Ω
    Maximum Input Voltage 1.5Vrms
    Resonance Frequency 133Hz ± 13Hz
    Vibration acceleration 1.46Gp-p at 300Hz (100g)
    Net Weight 8.9 ± 0.9g
